GOURLIS GROUP

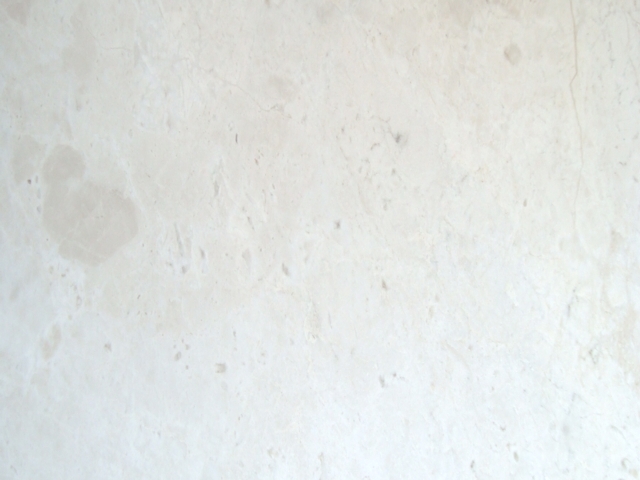

French Vanilla



MINERALOGICAL COMP (%w)

CALCITE            13
DOLOMITE         87
QUARTZ            0

CHEMICAL ANALYSIS (%)

CaO                  31.00
MgO                 20.00
SiO2                 0.70
Fe2O3              0.15
Al2O3               0.10
K2O                  0.01
Na2O                0.02
MnO                 <0.01
LOl                   46.00

PHYSICAL AND MECHANICAL PROPERTIES


Apparent Specific Weight
DIN 52102
Kg/m3
2802.00
Porosity & Water Acces. Porosity Det.
DIN 52102
% vol
0.89
Absorption Coefficient
DIN 52103
% wt
0.32
Modulus of Elasticity
DIN 1048 Teil 5
GPa
26.35
Compressive Strength (dry c.)
DIN 52105
MPa
106.00
Modulus of Rupture (dry c.)
DIN 52112
MPa
14.19
Compressive Strength
(after Freezing and Thaw Cycl.)
DIN 52104 & 52105
MPa
173.97
Abrasion Resistance
DIN 52108
Mm
2.73
Impact Strength
prEN 14158/2003
joule
4
